Description

Overview

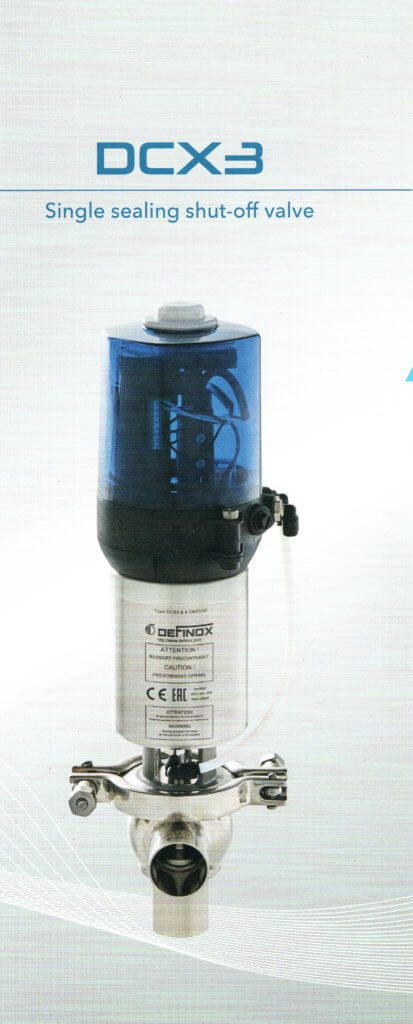

The Definox DCX3 shut off valve has been designed to efficiently respond to market requirements, both from a gleanability and an operational point of view.

Its different configurations incorporate the cutoff, tipoff and orientation functions.

With the Definox DCX3’s simple design, which has been tried and tested for many years, the floating PFA seal shut-off valves have successfully passed the EHEDG and 3A tests, guaranteeing their hygienic design, which is perfectly suitable for the food-processing industries.

The modular design facilitates the component interchangeability and incorporates a wide range of options and variants. The Definox DCX3 range shut-off valves can thus cover a large range of applications and process configurations, while at the same time meeting market expectations and requirements.

They are fitted as standard with a PFA floating seal plug ensuring excellent valve cleaning.

Definox DCX3 Product Advantage

*   From DN 25 to DN 150, US sizes 1/2″ to 6″

• PFA Floating seal, perfectly cleanable, ensuring perfect leak tightness at high temperature and good resistance to chemical products
• Spherical body with thick walls ensuring excellent resistance to expansion stresses and optimal cleanability
• Can be used in numerous applications and configurations including but not limited to: Various sealing solutions ( different grades of the latest generation elastomer-PFA-Metal-on-Metal ) Different body configuration options: L-T-X-Half X. Numerous end connections possible: SMS-DIN-Tri Clamp
• Removable and easily transformable pneumatic actuator: NO-NC-Double acting
• Easy & Quick maintenance thanks to the clamp subassembly assembly.

Definox DCX3 Valve Specifications

Size Range 1/2″ – 6″

Materials: Body Stem: 316L SS, Operator: 304 SS, Valve Seals: PFA floating plug seal, FKM stem seal & body seal. Optional seals: EPDM, FKM or Silicone plug seal, EPDM, FKM or Silicone stem & body seal.

Connections: OD tube Butt Weld, Tri Clamp, many others available upon request.

Options: Long stroke for improved solids handling, Tangential bodies for horizontal installation, PTFE diaphragm type body seal for stem isolation.

Signal Equipment: ICS Control top- valve sizes 1″ thru 3″, ACS Control top- valve sizes 4″ thru 6″, Network options: point to point & AS-i ( others upon request )



Definox DCX3 Valve pricing

We have listed a few of the most common valves that may easily be purchased online. These all range in size from 1″ thru 4″ with the L , T and Cross Body configurations with different seat options. There are many other end connections, sizes and fully customizable configurations available. Please call us at ( 800 ) 439-6909 for any special requests, seat material options, repair parts and technical questions.
