Description

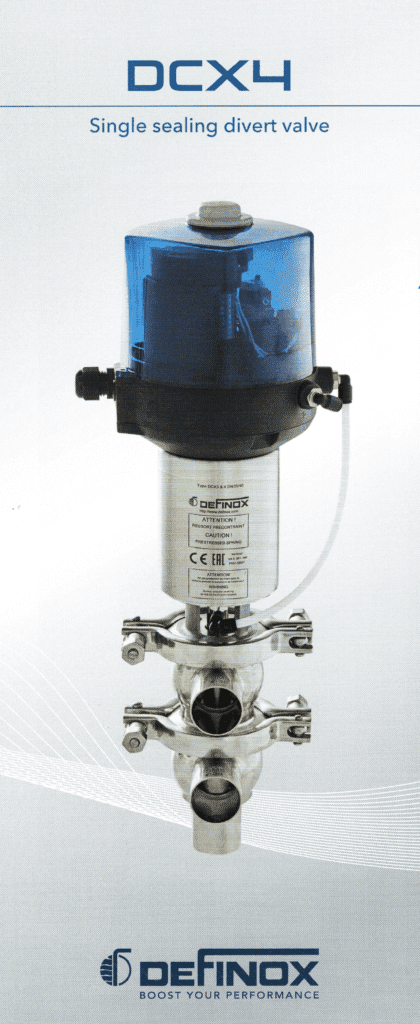

The Definox DCX4 divert valve has been designed to efficiently respond to market requirements, both from a cleanability and an operational point of view.
The Definox DCX4’s different configurations incorporate the cutoff, tipoff and orientation functions.
With their simple design, which has been tried and tested for many years, the floating PFA seal divert valves have successfully passed the EHEDG and 3A tests, guaranteeing their hygienic design, which is particularly suitable for the food processing industries.
The Definox DCX4’s modular design facilitates the component interchangeability and incorporates a wide range of options and variants. Definox DCX range divert valves can thus cover a large range of applications and process configurations, while at the same time meeting market expectations and requirements.
The Definox DCX4 valves are fitted as standard with a floating PFA seal plug ensuring excellent valve cleaning.
Definox DCX4 Product Adavantages
- Sizes from DN 25 to DN 150 SMS-DIN and US versions
- Floating PDFA seal, perfectly cleanable, ensuring perfect leak tightness at high temperature and good resistance to chemical products.
- Spherical body with thick walls ensuring excellent resistance to expansion stresses and optimum gleanability.
- Can be used in numerous applications and configurations. The DCX 4 has various sealing solutions ( different grades of latest generation elastomer – PFA )
- Different body configuration options: L/L, L/T,T/L,T/T,L/X.
- Numerous end connection including SMS-DIN-Tri Clamp
- Removable and easily transformable pneumatic actuator: NO-NC-Double Acting
- Easy & Quick maintenance thanks to the clamp subassembly assembly.
Definox DCX4 Valve Specifications
- Size Range 1/2″ thru 6″
- Materials: Body/ Stem 316L SS, Operator 304 SS, Valve Seals: PFA floating plug seal, Viton stem seal & body seal.
- Optional seals: EPDM, Viton or Silicone plug seal. EPDM, Viton or Silicone stem & body seal.
- Connections: Tube OD Butt Weld, Sanitary Clamp, others upon request.
- Options: Long Stroke for improved solids handling, Tangential bodies for horizontal installation, PTFE diaphragm type body seal for stem isolation.
- Signal Equipment: ICS Control top-valve sizes 1″-3″. ACS Control Top valve sizes 4″ – 6″, Network options: point-to-point & AS-i ( others upon request )
Definox DCX4 Valve Pricing
We have listed a few of the most common valve configurations that may easily be purchased online. These all range in size from 1″ thru 4″ with the L, T and Cross Body configurations with different seat options. These all have Sanitary Tri Clamp end connections on them. There are many other end connections, sizes and fully customizable configurations available. Please call us at ( 800) 439-6909 for any special requests, seat material options, repair parts and technical questions.
