Description

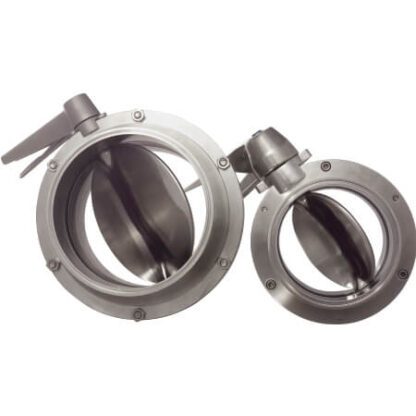

Tru-Flo 316L Sanitary Butterfly Valves come with either Tri Clamp or Butt Weld end connections and a variety of seat compounds. These valves can also be actuated with pneumatic, electric, or canister actuators. Please call R&S Supply Company at (800)439-6909 for all actuator options and pricing.
Features & Specifications
- ASTM 316L grade Stainless Steel
- Surface finish meets 3-A, FDA & USDA standards
- 316L mirror finish disc provides an even flow preventing obstructions and restrictions
- The opposing body bolt design prevents loosening between body sections due to vibration and operation and provides positive sealing
- Bolting is flush with the body surface
- FDA approved available seat options: Silicone, EPDM, and Viton
- 13 position 304 SS spring-loaded lever lock handle on sizes 1/2″-6″
- Standard end connections are Tri Clamp or Butt Weld. Please call R&S Supply Company at (800) 439-6909 for other available end connections.
- Suitable for actuation with pneumatic, electric, or canister actuators
- 110 psi @ 200 F
