Description

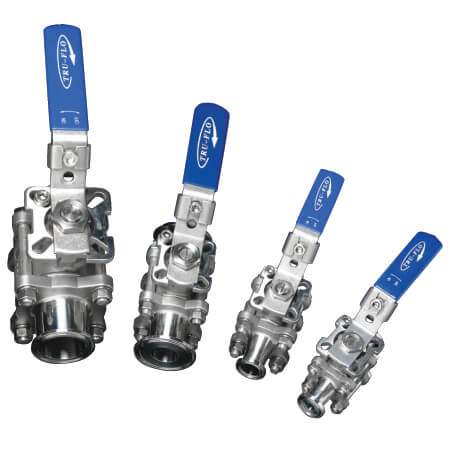

Tru Flo’s next generation Sanitary Tri Clamp ball valves are live loaded with self adjusting packing and a design that is specifically manufactured for high cycle applications. TRU-FLO products reduce the worries of routine maintenance expenses while lowering actuntioncosts by eliminating custom brackets and couplers. Double O-Ring protection provides additional defense against leaking through stem and lowers operating torque. Stem design automatically adjusts compression of the seal to compensate for wear, pressure and temperature.
Features & Benefits

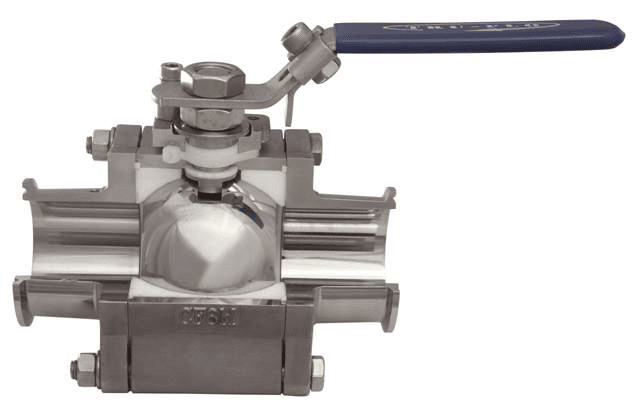

- Double sealing stem design
- ANSI B16/B2/B18, MSS-SP82, NSF 61 AWWA
- Designed for high cycle automated applications
- Highly polished internals and end caps with 8-12 Ra finish
- All materials comply with FDA,USDA & 3A requirements
- Investment cast body & end caps
- ASTM 316 Stainless Steel
- Standard with Tri Clamp ends; other end configurations available. Please call R&S Supply Company at ( 800 ) 439-6909 for available options.
- 100% tested and inspected prior to shipping
- Full traceability of all components
- SST x PTFE steam seats available for high temperature applications. Please call R&S Supply Company at ( 800 ) 439-6909 for more information
- Standard seats are TFM-1600
- Cavity fillers are virgin PTFE- meets CFR21
- 3A rated
